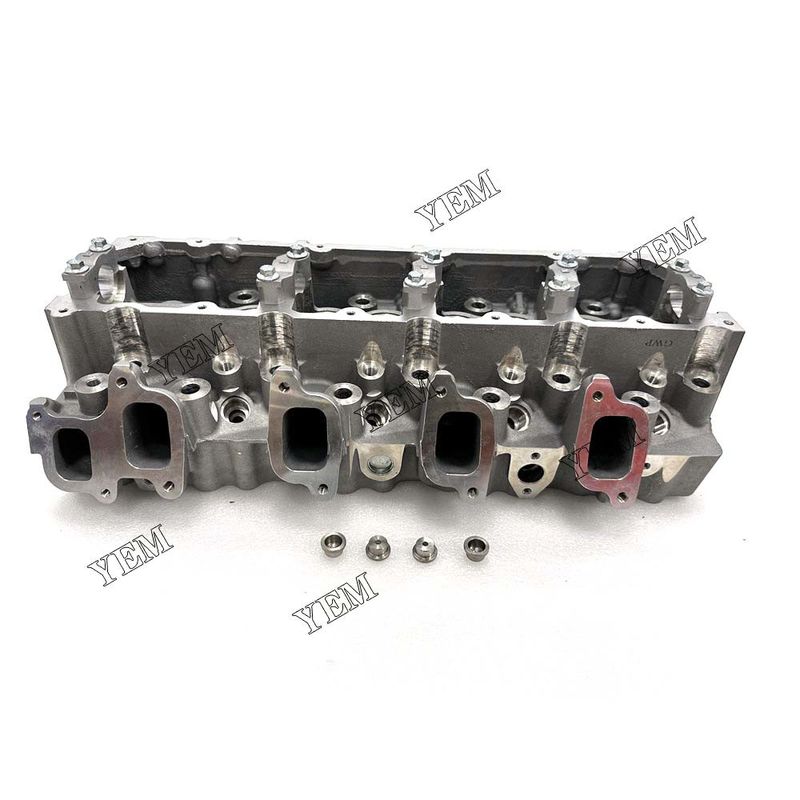

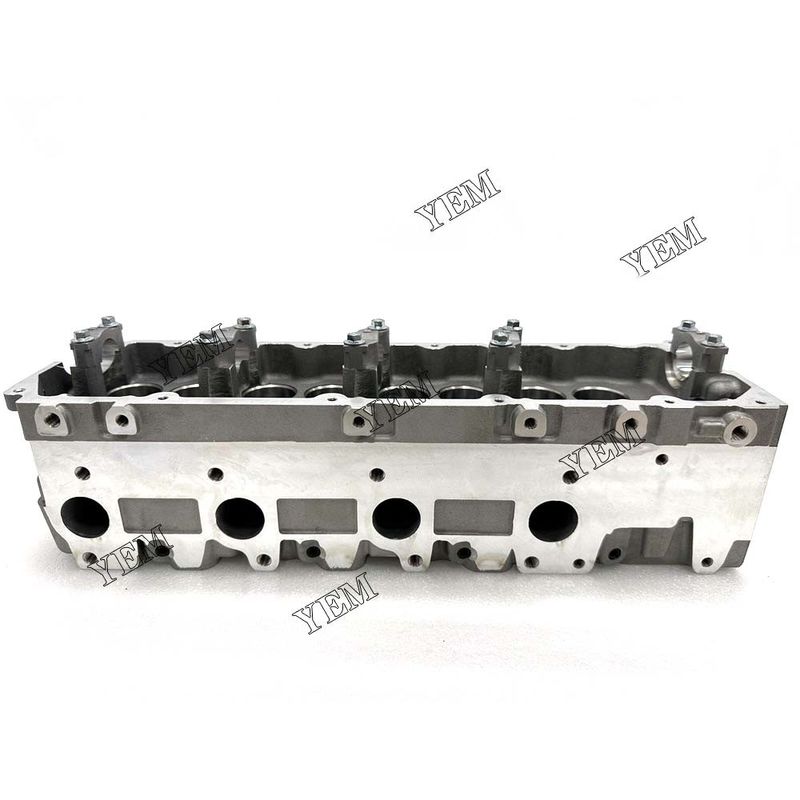

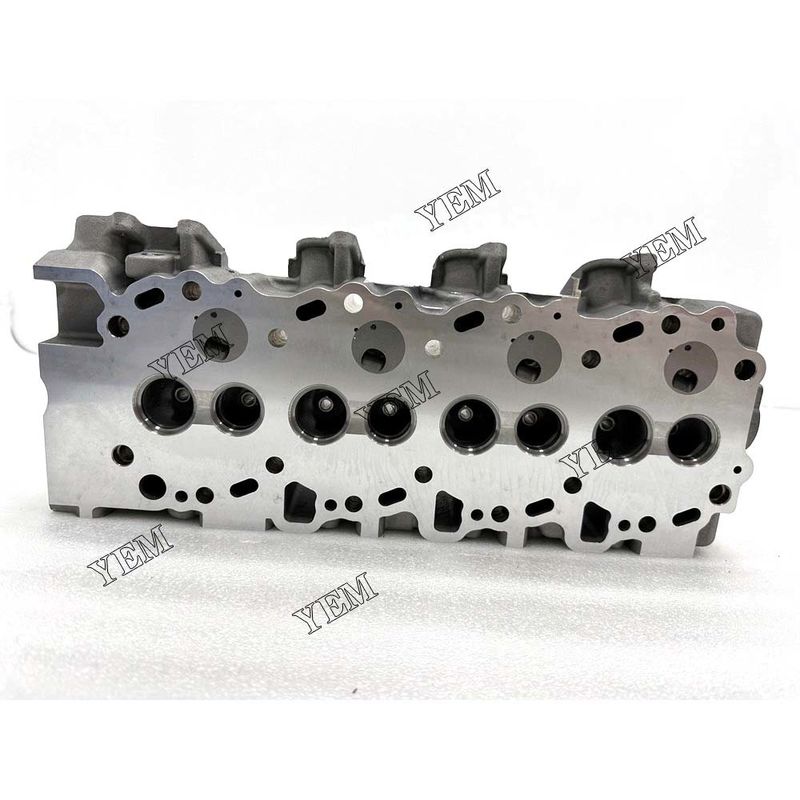

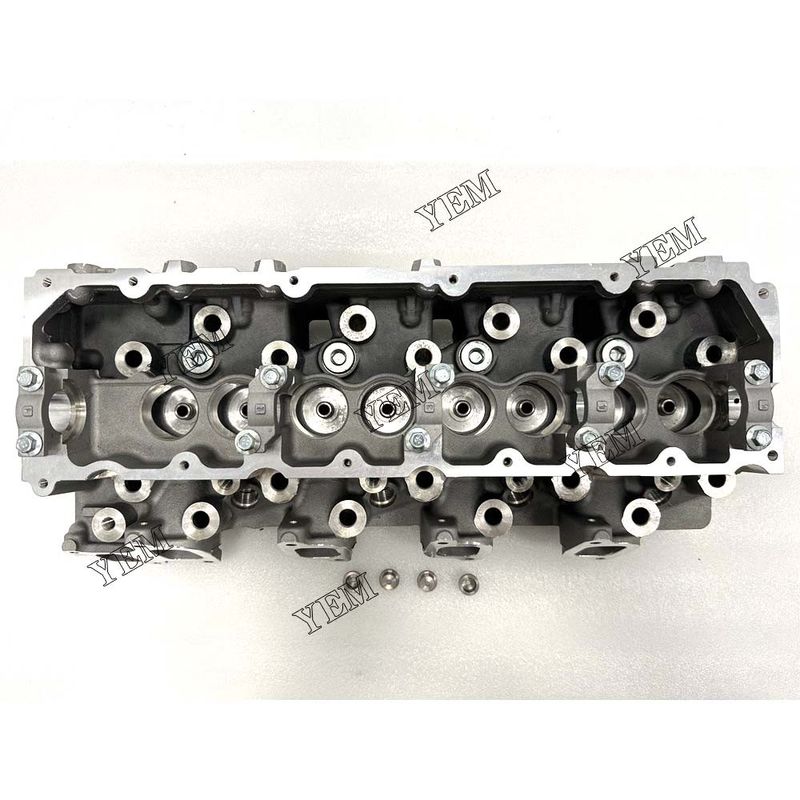

OEM Practical Diesel Engine Cylinder Head For Toyota 1KZ 1KZ-TE

For Toyota Cylinder Head 1KZ 1KZ-TE Diesel Engine Parts

Item Include:

1 PCS Cylinder Head

Applications:

Land Cruiser Prado KZJ90, KZJ95, KZJ120L, KZJ120R[2]
Land Cruiser Prado KZJ71W, KZJ73W, KZJ78W.[3][4]
Hilux Surf KZN130, KZN185
Hilux KZN165
Toyota HiAce
Granvia

Product Installation Instructions for Toyota Cylinder Head 1KZ 1KZ-TE Diesel Engine Parts

Please follow these guidelines carefully for the proper installation of the Toyota Cylinder Head 1KZ 1KZ-TE Diesel Engine Parts:

1. Preparation:

   • Before installation, ensure the engine is completely cooled down to prevent any accidents or burns.
   • Thoroughly clean the engine block and the cylinder head mating surfaces to remove any debris, old gasket material, and contaminants.
   • Inspect all parts to ensure they are free from any damage or defects.

2. Gasket Installation:

   • Place a new, compatible cylinder head gasket over the engine block, ensuring proper alignment with the cylinder bores and coolant passages.
   • Use a light coat of engine assembly lubricant on both sides of the gasket to aid in sealing and prevent dry starts.

3. Cylinder Head Installation:

   • Carefully position the Toyota Cylinder Head 1KZ 1KZ-TE onto the engine block, aligning it with the cylinder head dowels and the gasket.
   • Install the cylinder head bolts according to the manufacturer's specified torque sequence and values.
   • Torque the bolts in stages to the recommended torque setting to achieve uniform clamping force.

4. Valvetrain Assembly:

   • Install the valves, valve springs, and retainers according to their original positions. Pay attention to any specific markings or identifications for proper placement.
   • Ensure the camshaft is correctly timed and aligned with the crankshaft and other engine components.
   • Apply appropriate lubrication to the camshaft and followers to minimize wear during initial startup.

5. Timing Belt/Chain Installation:

   • If applicable, carefully install the timing belt or chain, following the manufacturer's recommended procedures for tensioning and alignment.
   • Double-check the timing marks on the camshaft and crankshaft to ensure proper synchronization.

6. Other Components:

   • Reattach any disconnected engine components, such as the intake and exhaust manifolds, water pump, and sensors, following the manufacturer's guidelines.

7. Fluids and Testing:

   • Refill the engine with the appropriate fluids, including coolant and engine oil, to the recommended levels.
   • Perform a thorough inspection to verify the correct installation of all components.
   • Conduct a leak test to ensure proper sealing of the cylinder head and associated gaskets.

8. Initial Startup:

   • Crank the engine without starting to build oil pressure and ensure that all components are functioning correctly.
   • Once confirmed, start the engine and let it idle for a few minutes, checking for any unusual noises or leaks.

Remember, the installation of the Toyota Cylinder Head 1KZ 1KZ-TE Diesel Engine Parts requires precision and attention to detail. If you are unsure about any step in the process, it is recommended to seek assistance from a qualified mechanic or refer to the official Toyota service manual for further guidance. Improper installation can lead to severe engine damage or failure.
